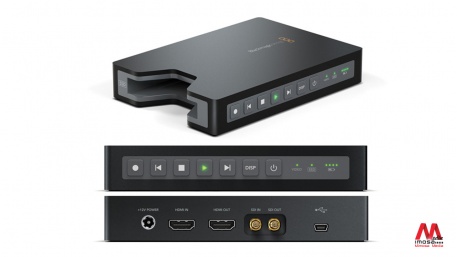

Đầu ghi Blackmagic Design HyperDeck Shuttle

Thiết bị đi kèm gồm:

  • 01 Đầu ghi
  • 01 Ổ cứng SSD 500gb
  • 01 Đầu chép
  • Dây cáp, nguồn

Giá bán: Liên hệ / ngày

Giá thuê: Liên hệ / ngày

Connections
SDI Video Input 1 x 10-bit SD/HD switchable via DIN 1.0/2.3 connector.
SDI Video Output 1 x 10-bit SD/HD switchable via DIN 1.0/2.3 connector.
HDMI Video Input 1 x HDMI 1.3 type A connector
HDMI Video Output 1 x HDMI 1.3 type A connector
SDI Audio Input 16 Channels embedded in SD and HD
SDI Audio Output 16 Channels embedded in SD and HD
HDMI Audio Input 8 Channels embedded in SD and HD
HDMI Audio Output 2 Channels embedded in SD and HD
SSD Interface 1 x 2.5″ SATA 3Gb/s
Sync Input None
Device Control None
Recorder Control 7 buttons for local control of HyperDeck Shuttle or use USB 2.0 high speed interface
Recorder Configuration Use USB 2.0 high speed interface
Computer Interface 1 x Mini-B type USB 2.0 connector for initial setup, firmware updates and HyperDeck Utility software control
Standards
SD Format Support 625/25 PAL and 525/29.97 NTSC. 480p60 and 576p50 via HDMI only.
HD Format Support 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30.
SDI Compliance SMPTE 259M, SMPTE 292M
SDI Metadata Support HD RP188 and closed captioning.
Video Sampling 4:2:2
Audio Sampling Television standard sample rate of 48 kHz and 24 bit
Color Precision 10-bit
Color Space REC 601, REC 709
Multiple Rate support SDI and HDMI switches between 270 Mb/s standard definition SDI and 1.5 Gb/s HD-SDI.
