| Recording Media |
SD card(64MB to 2GB), SDHC card(4GB to 32GB) |
| File System |
FAT16/32 |
| File Format |
WAV, MP3 |
| Recording/Playback Format |
|
| WAV |
44.1/48/96 (HS mode) kHz, 16/24-bit |
| Sampling frequency |
|
| STD mode |
44.1k / 48k Hz |
| HS node |
44.1k / 48k / 96k Hz |
| Quantization bit rate |
16bit / 24bit |
| MP3 |
|
| Sampling frequency |
44.1k / 48k Hz |
| Recording bit rate |
32k / 64k / 96k / 128k / 192k / 256k / 320k bps |
| Playback bit rate |
32kbps to 320kbps |
| Number of Channels |
2 channels(stereo) |
| Playback Speed Control (VSA) |
-50% to +16%(1% step) |
| Analog Inputs |
|

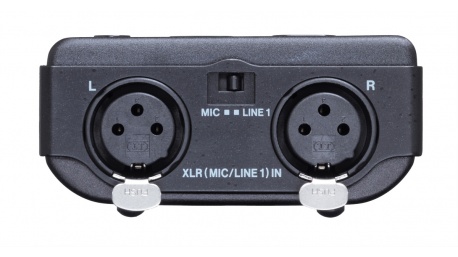

| MIC/LINE 1 IN |
Phantom Power Compatible |
| Connecter |
XLR-3-31 (1 : GND, 2 : HOT, 3 : COLD |
| MIC |
Switch is set to MIC |
| Input Impendance |
2.1k ohms |
| Nominal Input Level |
-14dBu |
| Maximum Input Level |
+2dBu |
| LINE 1 |
Switch is set to LINE |
| Input Impendance |
2.5k ohms |
| Nominal Input Level |
+4dBu |
| Maximum Input Level |
+24dBu |
| LINE 2 IN |
|
| Connetor |
3.5mm(1/8") Stereo mini jack |
| Input Impedance |
22 k ohms or more |
| Nominal Input Level |
-10dBV |
| Maximum Input Level |
+6dBV |
| Analog Output |
|
| LINE OUT (XLR LINE IN) |
|
| Connector |
3.5mm(1/8") Stereo mini jack |
| Output Impendance |
200 ohms |
| Nominal Output Level |
-14dBV |
| Maximum Output Level |
+6dBV |
| Digital Input |
|
| Connector |
2.5mm(3/32") TRS jack |
| Format |
IEC60958-3(S/PDIF) |
| PHONES |
|
| Connector |
3.5mm(1/8") Stereo mini jack |
| Maximum Output |
25mW+25mW(32ohms loaded) |
| USB |
|
| Connector |
Mini-B type |
| Format |
USB2.0 HIGH SPEED mass storage class |
| REMOTE |
|
| Connector |
2.5mm(3/32") TRS jack |
| Format |
Exclusive TASCAM RC-10/RC-3F |
| Built-in Speaker |
0.4W (mono) |
| Power Supply |
Exclusive Li-ion battery (BP-L2),
2 AA batteries,
Exclusive AC adapter (PS-P520),
Exclusive external battery pack (BP-6AA) |
| Power Consumption |
4W(MAX) |
Battery operation time
(Recording) |
|
| Li-ion battery (BP-L2) |
Built-in mics(UNI/OMNI)
Approx 5 hours(Recording WAV, 44.1kHz, 16 bit)
|
Alkaline batteries
(EVOLTA) |
Built-in mics(UNI/OMNI)
Approx 2 hours 45 minutes(Recording WAV, 44.1kHz, 16 bit)
|
Ni-MH batteries
(eneloop) |
Built-in mics(UNI/OMNI)
Approx 4 hours(Recording WAV, 44.1kHz, 16 bit)
|
| Dimensions |
3.15(W)×6.024(H)×1.378(D) inch
80(W)×153(H)×35(D) mm |
Weight
(without batteries) |
0.64lb
290g |
| Operating Temerature |
0˚C to 4˚C |

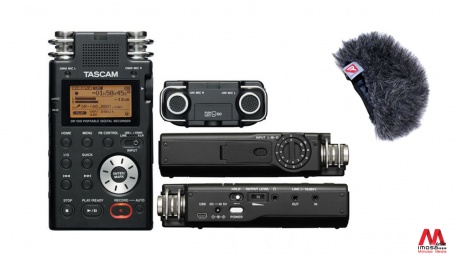

| Included Accessories |
2GB SD card, Exclusive Li-ion battery (BP-L2), USB connection cable, Exclusive soft case, Exclusive windsock, Wireless remote control (RC-10), Coin cell battery for confirming remote control operation, Wired remote control adapter, Wired remote control cable, Digital input conversion cable, Owner's Manual, Warranty card |
