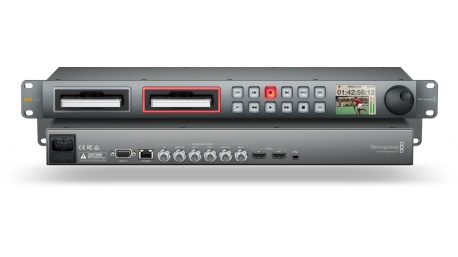

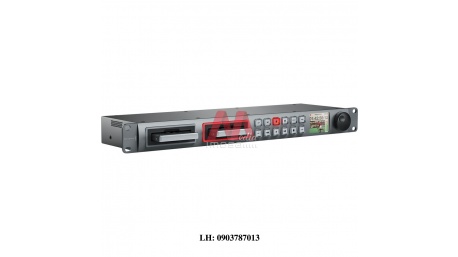

| Video Input |
Digital Video
1 x SDI (10-bit SD/HD/3G switchable)
1 x HDMI 1.4 type A |
| Video Output |
Digital Video
1 x SDI Loop Through(10-bit SD/HD/3G switchable)
2 x SDI (10-bit SD/HD/3G switchable)
1 x SDI Monitor Output (10-bit SD/HD/3G switchable)
1 x HDMI 1.4 type A |
| Audio Input |
Digital
SDI
16 x channels embedded in SD and HD in QuickTime files.
2 x channels in Avid DNxHD MXF files.
HDMI
8 x channels embedded in SD and HD in QuickTime files.
2 x channels in Avid DNxHD MXF files. |
| Audio Output |
SDI
16 x channels embedded in SD and HD in QuickTime files. 2 x channels in Avid DNxHD MXF files.
HDMI
8 x channels embedded in SD and HD in QuickTime files.
2 x channels in Avid DNxHD MXF files. |
| Computer Interface |
1 x USB 2.0 mini B-type for initial setup, software updates and HyperDeck Utility software control |
| SSD Interface |
2 x 2.5" SATA 3Gb/s |
| Sync Input |
Blackburst or Tri-Sync |
| Device Control |
Sony compatible RS-422 deck control port |
| Recorder |
Recorder control:
12 buttons and jog wheel for local control /
or use either RJ45 Ethernet or USB 2.0 high speed interface
Recorder configuration:
use USB 2.0 high speed interface |
| Format Support |
SD
NTSC/PAL
525 29.97 / 625 25 (525 59.94i / 625 50i)
480p60 and 576p50 via HDMI only
HD
720p 50/59.94/60
1080i 50/59.94/60
1080PsF 23.98/24/25/29.97/30
1080p 23.98/24/25/29.97/p30 |
| SDI Compliance |
SMPTE 259M, SMPTE 292M |
| SDI Metadata Support |
HD RP188 and closed captioning |
| Sampling |
Video: 4:2:2 Audio: 48kHz/24-bit |
| Color Precision |
10-bit |
| Color Space |
REC 601
REC 709 |
| Multiple Rate Support |
SDI switches between 270 Mb/s standard definition SDI, 1.5G-SDI HD |
| Copy Protection |
HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content. |
| Codecs Supported |
Uncompressed QuickTime
Apple ProRes 422 (HQ) QuickTime
Apple ProRes 422 (LT) QuickTime
Apple ProRes 422 (Proxy) QuickTime
Avid DNxHD QuickTime
Avid DNxHD MXF |
| Display |
Built-in LCD for video, audio and timecode monitoring |
| Rack Size |
1RU / less than 7" deep (approx. less than 18 cm) |
| Power Supply |
Built-in international AC power supply with IEC C14 inlet
110-240V, 50-60Hz
Note: AC power cord is not included |
