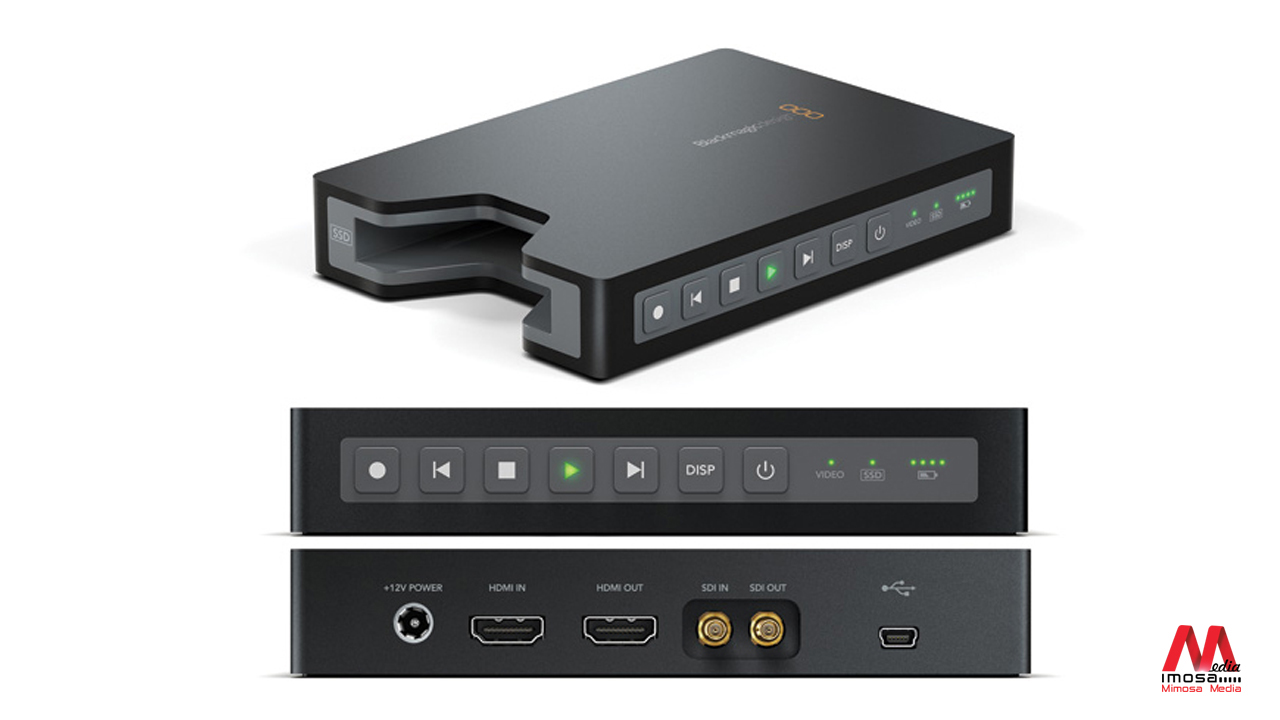

Đầu ghi Blackmagic Design HyperDeck Shuttle

SDI Video Input

1 x 10-bit SD/HD switchable via DIN 1.0/2.3 connector.

SDI Video Output

1 x 10-bit SD/HD switchable via DIN 1.0/2.3 connector.

HDMI Video Input

1 x HDMI 1.3 type A connector

HDMI Video Output

1 x HDMI 1.3 type A connector

SDI Audio Input

16 Channels embedded in SD and HD

SDI Audio Output

16 Channels embedded in SD and HD

HDMI Audio Input

8 Channels embedded in SD and HD

HDMI Audio Output

2 Channels embedded in SD and HD

SSD Interface

1 x 2.5" SATA 3Gb/s

Sync Input

None

Device Control

None

Recorder Control

7 buttons for local control of HyperDeck Shuttle or use USB 2.0 high speed interface

Recorder Configuration

Use USB 2.0 high speed interface

Computer Interface

1 x Mini-B type USB 2.0 connector for initial setup, firmware updates and HyperDeck Utility software control

SD Format Support

625/25 PAL and 525/29.97 NTSC. 480p60 and 576p50 via HDMI only.

HD Format Support

720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30.

SDI Compliance

SMPTE 259M, SMPTE 292M

SDI Metadata Support

HD RP188 and closed captioning.

Video Sampling

4:2:2

Audio Sampling

Television standard sample rate of 48 kHz and 24 bit

Color Precision

10-bit

Color Space

REC 601, REC 709

Multiple Rate support

SDI and HDMI switches between 270 Mb/s standard definition SDI and 1.5 Gb/s HD-SDI.
