Bán Bàn Trộn Hình Datavideo SE-700 Hàng Mỹ xách tay

Mô tả sản phẩm

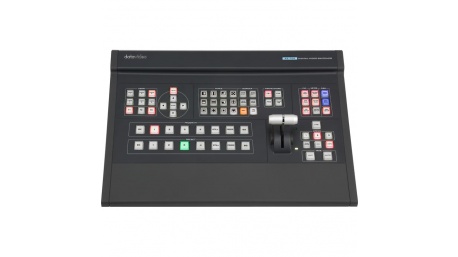

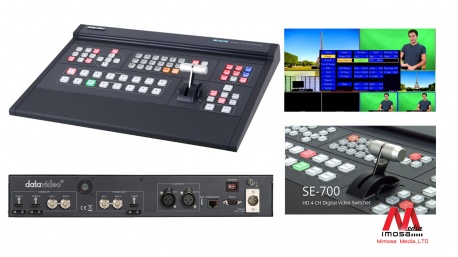

Bàn trộn hình Datavideo SE-700 hàng xách tay từ Mỹ

Tình trạng mới 95%

32.000.000 /ngày

Thông số kỹ thuật

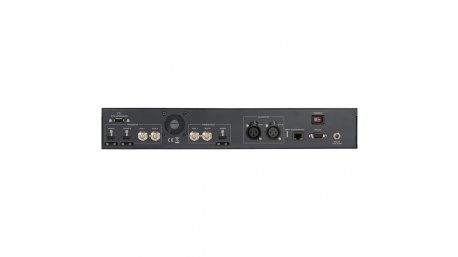

Connections
Total Video Inputs 2 HDMI + 2 SDI
Total Outputs 1 HDMI + 2 SDI
SDI Video Input 2 (1080i / 720p)
HDMI Video Input 2 HDMI (RGB/YUV)
1080i / 720p
SDI Audio Output (PGM) 2CH
Analog Audio Input 2CH XLR
Embedded Audio HDMI & SDI
Internal Frame Synchronizers 4 All Inputs
PGM Out HDMI / SDI
Multi-view Out HDMI (720p->720p ; 1080i->1080p)
SDI (720p->720p ; 1080i->1080i)
Output can select any of input source PROGRAM (w/ DSK)
Clean PROGRAM
PREVIEW (w/o DSK)
MULTISCREEN
Input 1~4
Audio Indicator on Multi view Yes (output 2CH)
Tally Out Yes
GPI Yes (Level / Pulse Trigger selectable)
Software Updates Ethernet
Standards
HD Format Support 1080i/50, 1080i/59.94, 1080i/60, 720p/50, 720p/59.94, 720p/60
SDI Compliance SMPTE 292M (SDI output / PGM out)
Video Sampling 4:2:2 10-bit
Color Precision 4:2:2 10-bit
Color Space 4:2:2 YUV
HDMI Input Resolutions for Computers 1280×720 59.94Hz 50Hz (720p)
1920×1080 59.94Hz 50Hz (1080p & 1080i)
Processing
Colorspace Conversion Hardware based real time
Processing Delay Less than 1 frame
Audio Mixer selectable audio follow video,
master gain control
Extras
Downstream Keyers 1
Linear/Luma Keyers 3 (M/E Keyer, PIP, DSK)
Chroma Keyers 1 Upstream Keyer,
1 Upstream PIP
Pattern Generators Color Bar
PIP 1
XPT Yes
Frame store Total 1000+ Stills on Internal SD Card
One dedicated still buffer, one dedicated freeze buffer. Also, any Input can be used as Frame store, 3 Still frames stored in local frame buffers for instant access
Control Panel Compatibility Use PC via Ethernet; Control panel
Input Voltage 12V
Power consumption 23W
Power consumption 23W
Operating Temperature 0-50 deg. Celsius at 10%-80% Humidity
Control Protocol DVIP
Multi View Monitoring
Number of Windows 2 (PGM, PVW)
+6 (Inputs 1-4, Stills & Freeze)
+2 Output windows (SDI1, SDI2)
Routable Windows Yes (Follow XPT)
Tally Yes
Windows Source Labels Yes
