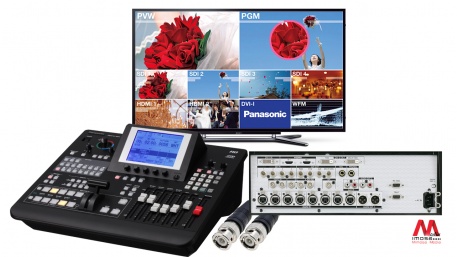

• Bàn Switcher Panasonic HMX100- 4-6Inputs HD/SD

Bàn Switcher Panasonic HMX100- 4-6Inputs HD/SD

Tính năng nổi bật:

  • 4 SDI, 2 HDMI, 2 analog composite, DVI-I
  • 4 SDI, 4 XLR, 2 HDMI, 1 Mic, 2 RCA
  •  Program — XLR, SDI, Preview — SDI; AUX SDI; headphone
  • Supports 1080/59.94i, 1080/50i, 720/59.94p, 720/50p and 480/59.94i and 576/50i

     Phụ kiện đi kèm khi thuê bàn trộn hình Panasonic AG-HMX100:

  • 01 Monitor
  • Dây cáp SDI, Dây âm thanh

      Ghi chú: Giá chưa bao gồm Recoder, Tally intercom, kỹ thuật bàn switcher



1.800.000₫ /ngày
Tags: ,

Panasonic AG-HMX100 Specs

Video Input
System Format HD:
1080/23.98PsF (for 3D only), 1080/59.94i, 1080/50i, 720/59.94p, 720/50p
SD:
480/59.94i, 576/50i

Mixed operation of different video formats is not possible
Signal Processing 4:2:2:4, 12 bit internal
Sampling Frequency 48 kHz
Quantization 16 bit for HDMI input
24 bit for SDI input
20 bit for analog input
Dynamic Range More than 90 dB at 1 kHz (digital)
More than 85 dB at 1 kHz (analog)
THD Less than 0.05 % at 1 kHz (digital)
Less than 0.08 % at 1 kHz (analog)
Cross Talk Less than -80 dB at 1 kHz, between any two channels (digital)
Less than -70 dB at 1 kHz, between any two channels (analog)
Headroom 20 dB and 18 dB switchable
Analog Composite Input 2x BNC, 1.0 V [p-p], 75ohm termination
SDI Input 4x BNC:
SD serial digital signal SMPTE259M-C/272M-A and ITU-R BT.656-4 standards
HD serial digital signal SMPTE292M/296M/299M standards
HDMI 2x HDMI type A
Reference Input 2x BNC with loop-through, 1.0 V [p-p], 75ohm auto termination
Composite signal NTSC/PAL
Program (PGM) output 1x SDI on BNC:
SD serial digital signal SMPTE259M-C/272M-A and ITU-R BT.656-4 standards
HD serial digital signal SMPTE292M/296M/299M standards

1x DVI-D, TMDS single link
Preview (PVW) Output 1x SDI on BNC:
SD serial digital signal SMPTE259M-C/272M-A and ITU-R BT.656-4 standards
HD serial digital signal SMPTE292M/296M/299M standards
Aux 1x SDI on BNC
SD serial digital signal SMPTE259M-C/272M-A and ITU-R BT.656-4 standards
HD serial digital signal SMPTE292M/296M/299M standards
Multi-viewer 1x SDI on BNC:
SD serial digital signal SMPTE259M-C and ITU-R BT.656-4 standards
HD serial digital signal SMPTE292M/296M standards

1 DVI-D, TMDS single link
Additional Ports TALLY: D-sub 9-pin, Open-Collector (8 ch)
Maximum current: Less than 50 mA
Maximum voltage: 35 VDC
GPI: 1x BNC, make-contact
RS-232C: 1x D-sub 9-pin
Audio Input
Advanced Reference Output 1x BNC, 75ohm
Composite signal sync: 0.286 V [p-p] NTSC /0.3 V [p-p] PAL
Burst: 0.286 V [p-p] NTSC /0.3 V [p-p] PAL
Audio Input 4x XLR (L and R), 4/0/-3 dBm switchable, balanced, 10k

4x SDI on BNC embedded audio:
SD serial digital signal SMPTE259M-C/272M-A and ITU-R BT.656-4 standards
HD serial digital signal SMPTE292M/296M/299M standards

2x HDMI type A embedded audio
AUX Input 1-pin jack (L and R), -10 dBv, High impedance, unbalanced
Microphone Input 1 M6, -60 dBV, 2k, monaural, unbalanced
Program (PGM) output 1x XLR (L and R), 4/0/-3 dBu switchable, low impedance, balanced

1x SDI on BNC embedded audio:
SD serial digital signal SMPTE259M-C/272M-A and ITU-R BT.656-4 standards
HD serial digital signal SMPTE292M/296M/299M standards

1-pin jack (L and R), -10 dBV, low impedance, unbalanced
Preview (PVW) Output 1x SDI on BNC embedded audio:
SD serial digital signal SMPTE259M-C/272M-A and ITU-R BT.656-4 standards
HD serial digital signal SMPTE292M/296M/299M standards
Aux 1x SDI on BNC embedded audio:
SD serial digital signal SMPTE259M-C/272M-A and ITU-R BT.656-4 standards
HD serial digital signal SMPTE292M/296M/299M standards
Headphones 1 M6, 8ohm, stereo, unbalanced, –infinity to –20 dBu
